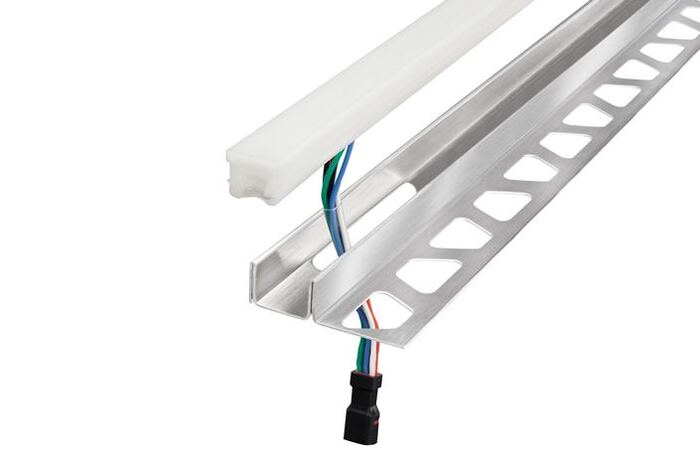

Schlüter-LIPROTEC-LLPM are ready-to-use LED modules made from a flexible, fully coated LED strip with homogeneous light distribution and a profile made of aluminium or stainless steel with a trapezoid-perforated anchoring leg. The LED modules are either available with fixed colour temperatures of 3200 K or 4900 K in the white light range or in the colour light range RGB+W. The latter enables over 16 million different colour and colour temperature combinations from 2500 K to 6500 K. The white LED module is available in the assembly height 11 mm for flush installation in the full thickness of the tile.
Schlüter-LIPROTEC-LLPM
Plug & play LED modules
Available material:
- anodised aluminium
- brushed stainless steel V4A
Available light colours:
- warm white
- neutral/cool white
- RGB+W
Available lengths (in cm):
Technical data of supplied LED modules:
LLPM1 (warm white)
- Abmessungen LED (B x H): 12 x 10,5 mm
- Watt/m: 5
- LED/m: 280
- Farbtemperatur (Kelvin): 3000 K
- CRi: 92
- Can be shortened every 25 mm
LLPM2 (neutral/cool white)
- Abmessungen LED (B x H): 12 x 10,5 mm
- Watt/m: 5
- LED/m: 280
- Farbtemperatur (Kelvin): 4900 K
- CRi: 92
- Can be shortened every 25 mm
LLPM9 (RGB+W)
- LED dimensions (W x H): 17 x 14.5 mm
- Watt/m: 15
- LED/m: 112
- Colour temperature (Kelvin): RGB+W (2700 K)
- CRi: 85
- Can be shortened every 62.5 mm
Note: max. length of the aligned LED modules in the LIPROTEC-EASY System: LLPM 9 = 6 m, LLPM 1+2 = 18 m
Available accessories:
Schlüter-LIPROTEC-LLPM/EK are end caps for a neat finish of LED plug & play sets. They are available in a right and a left version. The joint spacer is embedded in the tile adhesive.
- End cap, anodised aluminium 12 mm
- End cap, anodised aluminium 15 mm
- End cap, brushed stainless steel V4A 12 mm
- End cap, brushed stainless steel V4A 15 mm
Note: end caps in a width of 12 mm fit white LED modules. End caps in a width of 15 mm fit LED modules in RGB+W.
