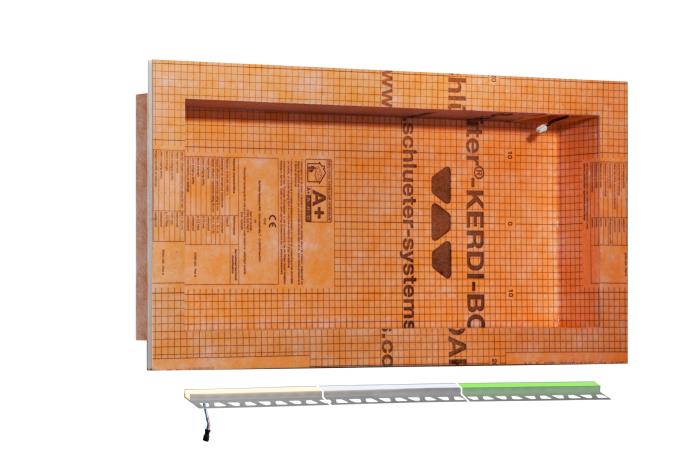

Schlüter-KERDI-BOARD-NLT are prefabricated installation components made of KERDI-BOARD with integrated LIPROTEC LED technology in plug & play design. They are used to create illuminated niches and storage shelves in wall areas of all kinds. These niches can be integrated into the Schlüter-KERDI waterproofing system as a bonded waterproofing assembly.

The niches are available in various dimensions and light colours. The rectangular niches either come with illumination at the long or the short side. The LED module can either be positioned at the front edge, in the centre or at the rear wall to be covered with tiles. The scope of supply includes all components required for installation such as cable connection, power supply and the waterproofing collar. We recommend using an on-site light switch to optimise operating convenience or integrate with a PIR. A separate Bluetooth control for RGB+W lighting, to be ordered separately, can be found in the Control section.

Schlüter-KERDI-BOARD-NLT/NLT-BR

Prefabricated niches with plug & play LED lighting

Scope of supply:

• Niche made of KERDI-BOARD
• KERDI sealing materials for bonded waterproofing
• LED module (warm white, neutral white or RGB+W)
• Cable connection
• Power supply
• Bluetooth control (for Schlüter-KERDI-BOARD-NLT-BR only)

Available light colours:

• Warm white (AE1)
• Neutral/Cool white (AE2)
• RGB+White (AE9)

Dimensions, mm (W x H x D):

• 305 x 305 x 89
• 305 x 508 x 89
• 305 x 711 x 89
• 508 x 305 x 89
• 711 x 305 x 89

The dimensions represent interior clearance dimensions. The first length specification is the illuminated length.

Technical data of supplied LED modules:

Warm white (AE1)

Neutral/Cool white (AE2)

• LED (W x H): 12 x 10,5 mm
• LED/m: 280
• Colour temperature (Kelvin): 4900 K
• CRi: 92
• included power supply: 230 V/15 W
• included cable: 3 m

RGB+White (AE9)

• LED (W x H): 17 x 14,5 mm
• LED/m: 112
• Colour temperature (Kelvin): RGB+W (2700 K)
• CRi: 85
• included power supply: 230 V/15 W
• included cable: 3 m
